DAV 1295 PTO/HOIST
PNEUMATIC CONTROL VALVES
another del
  • a
  • i
  • k
  • m
  • o
  • q
  • s
  • u
  • v
  • y
Operator Control

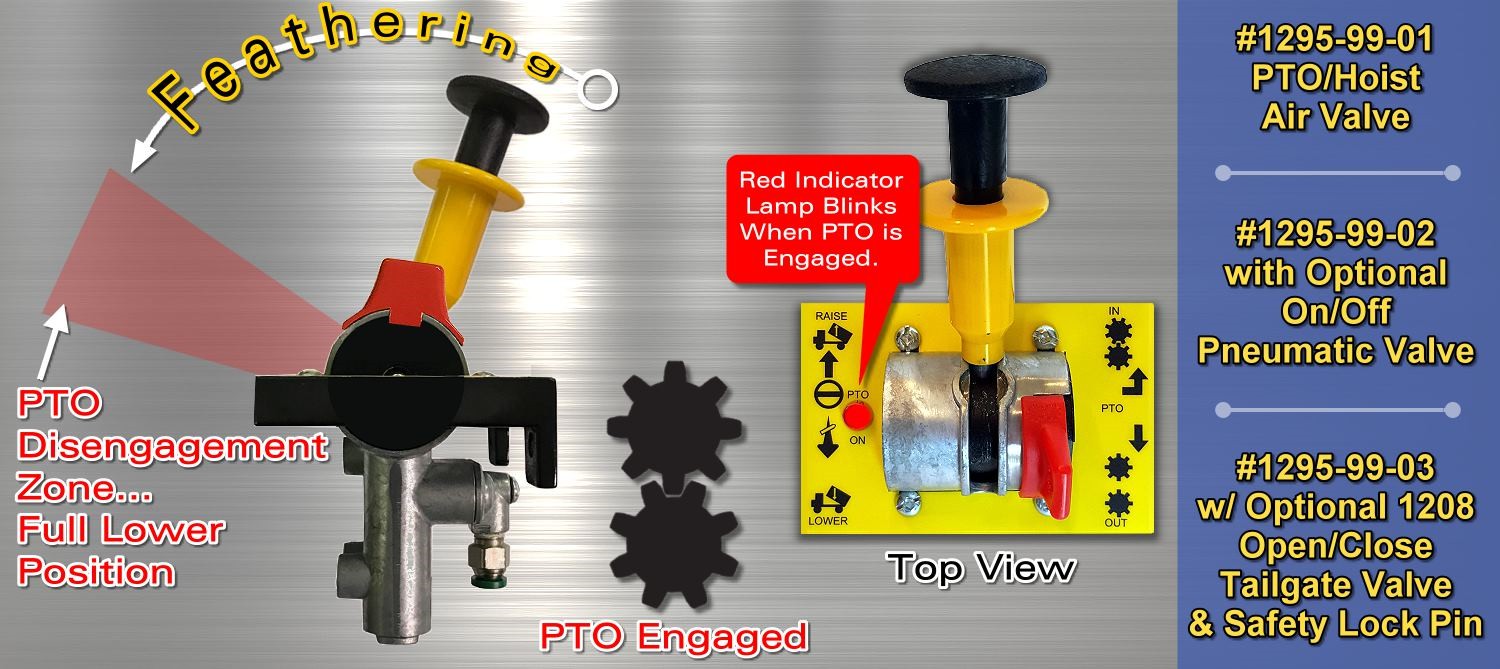

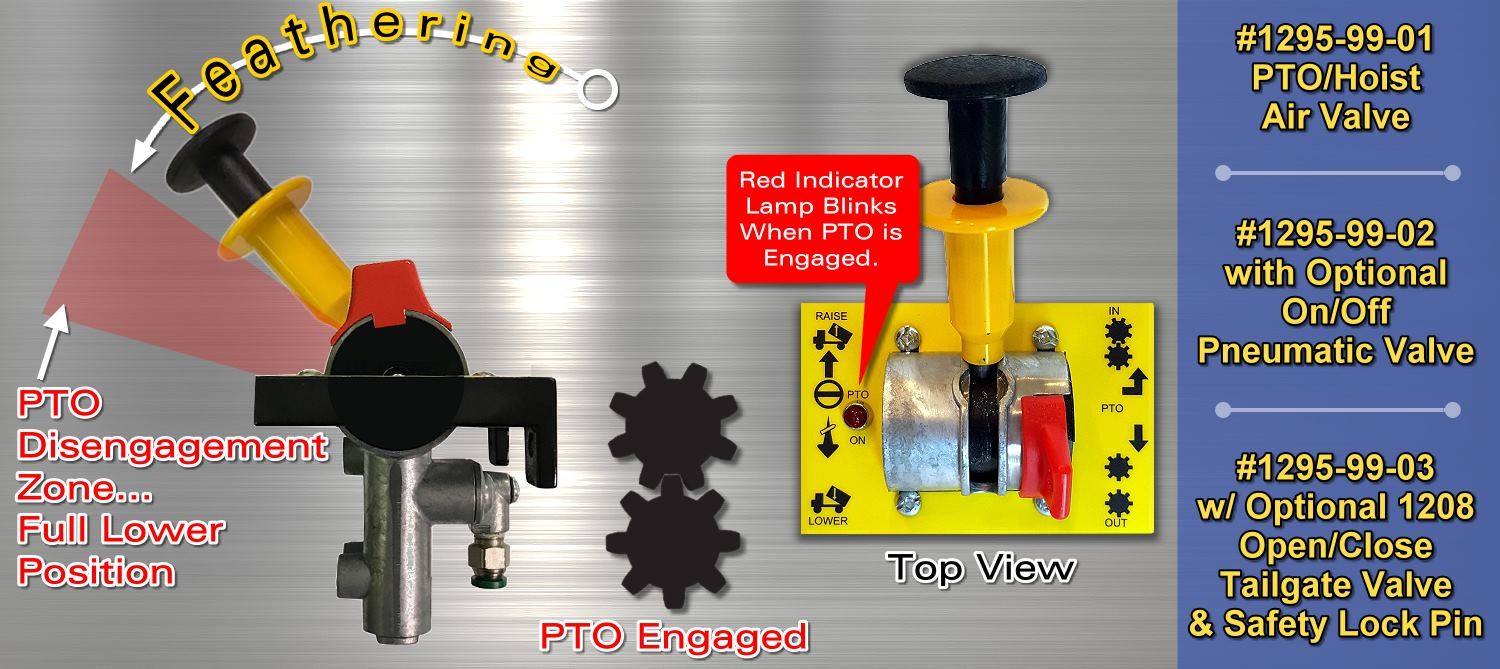

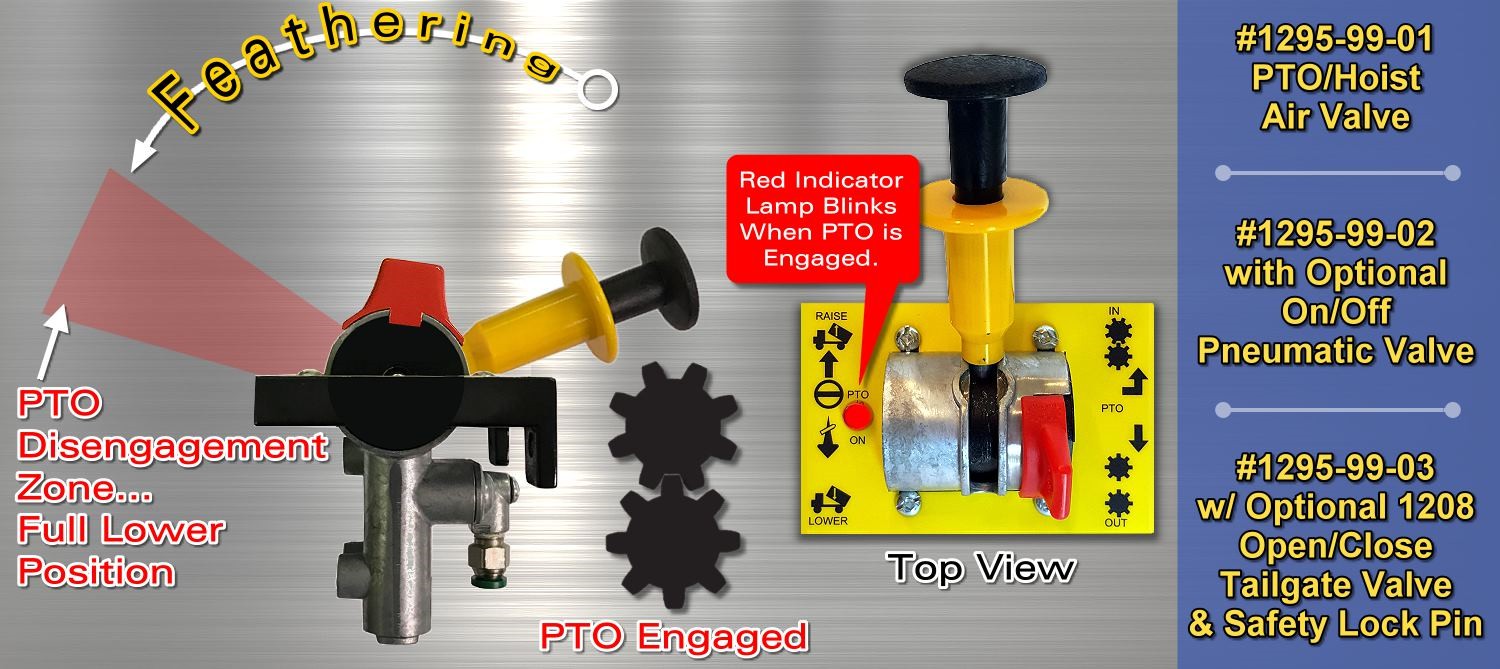

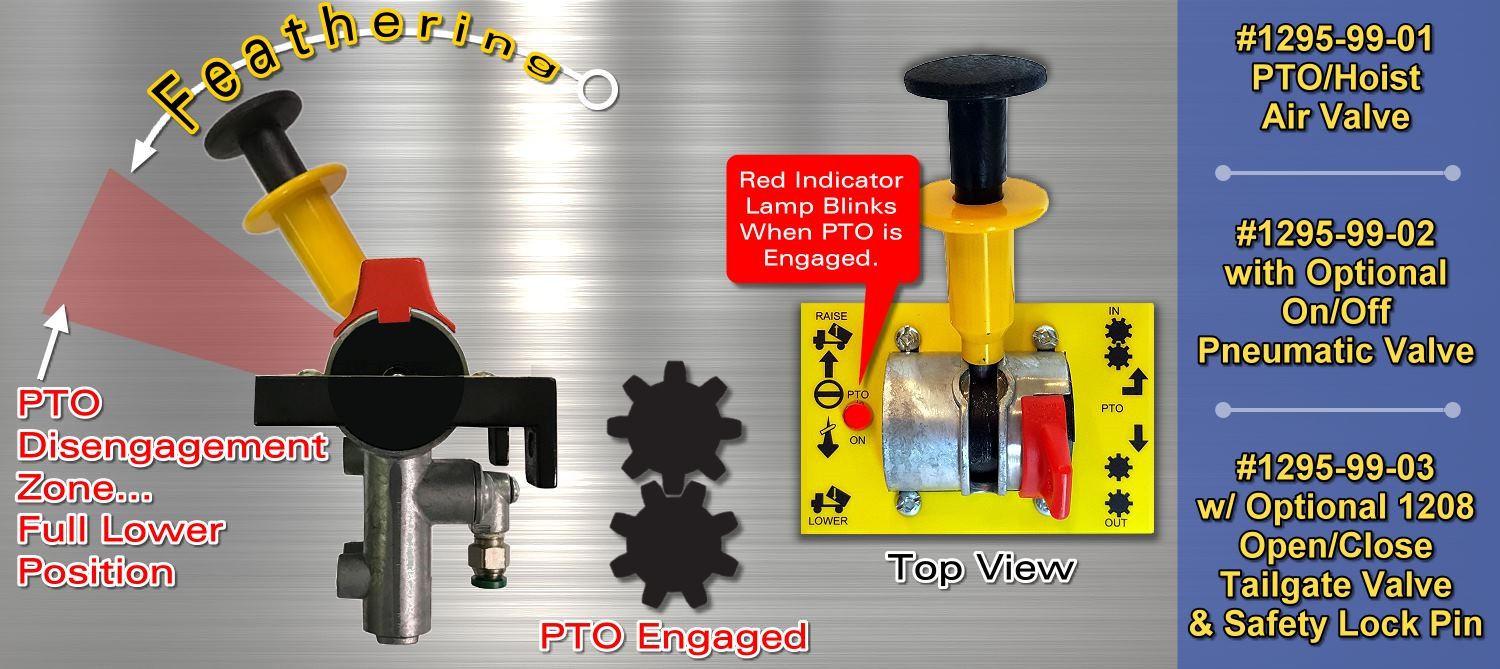

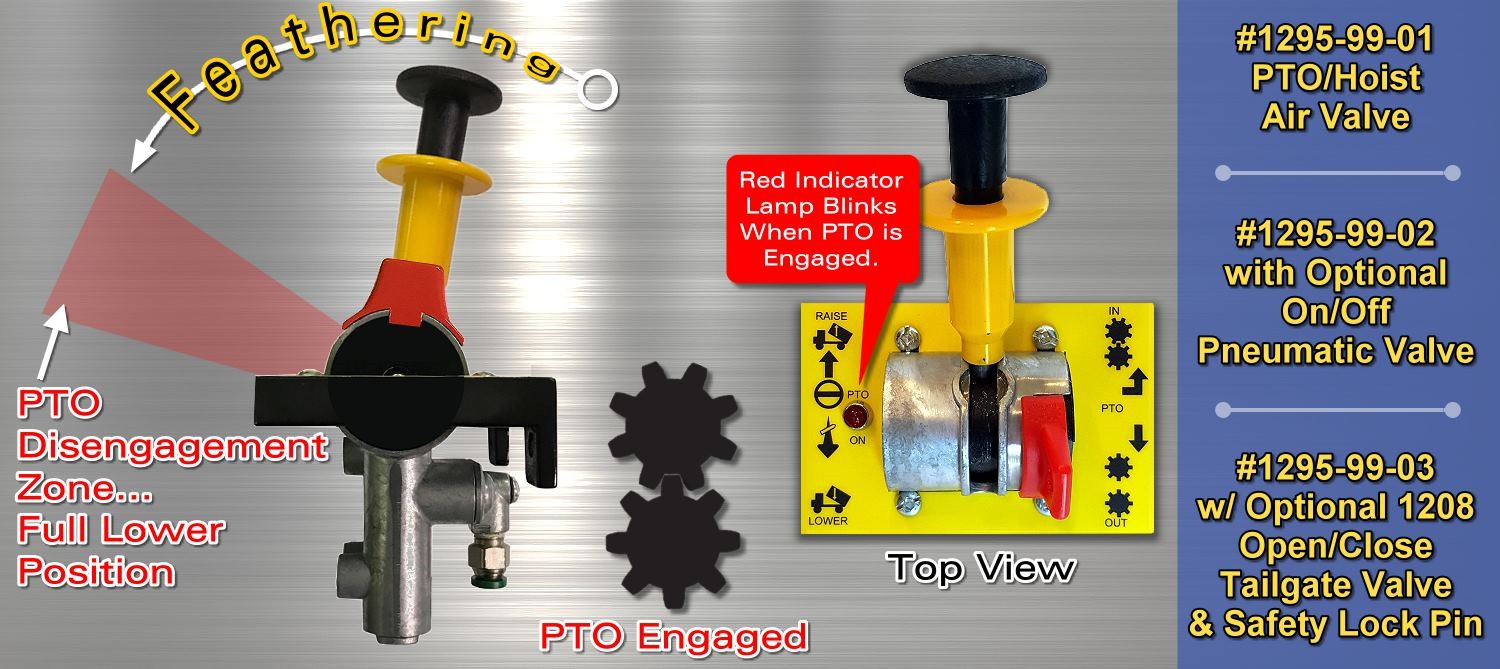

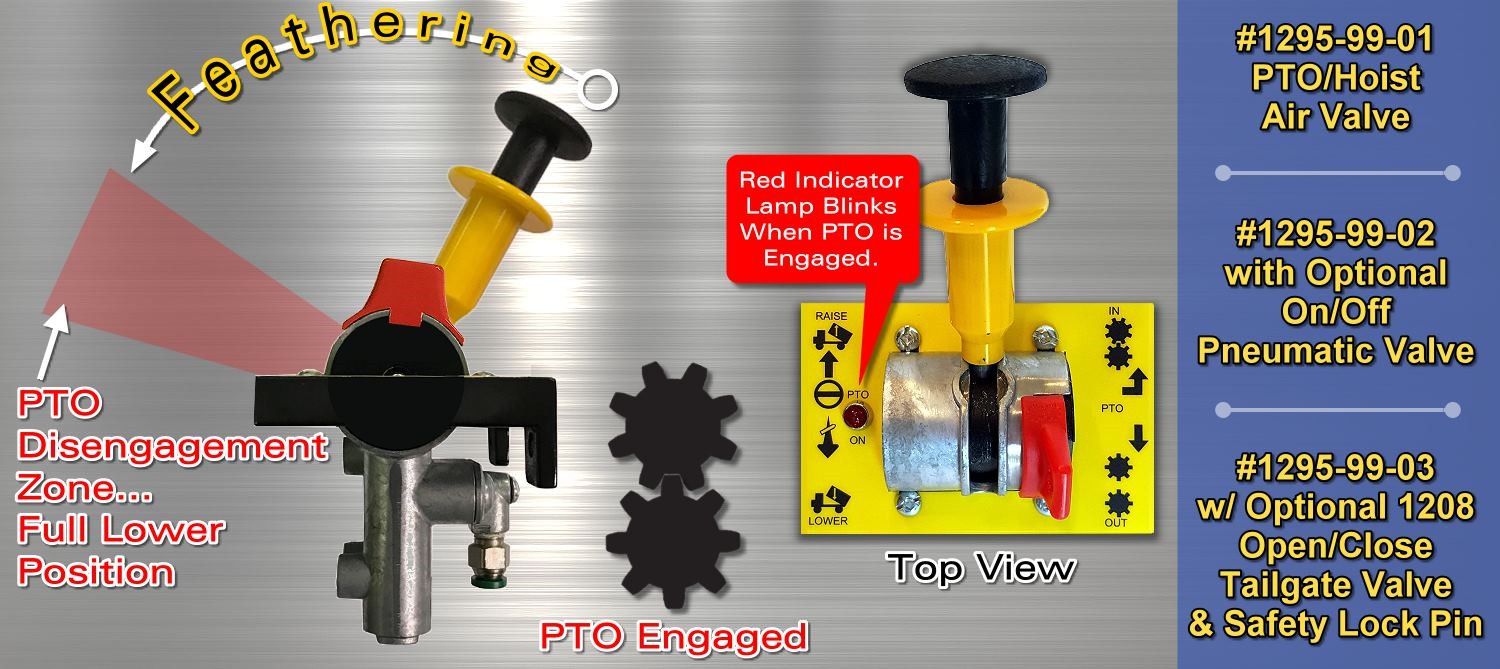

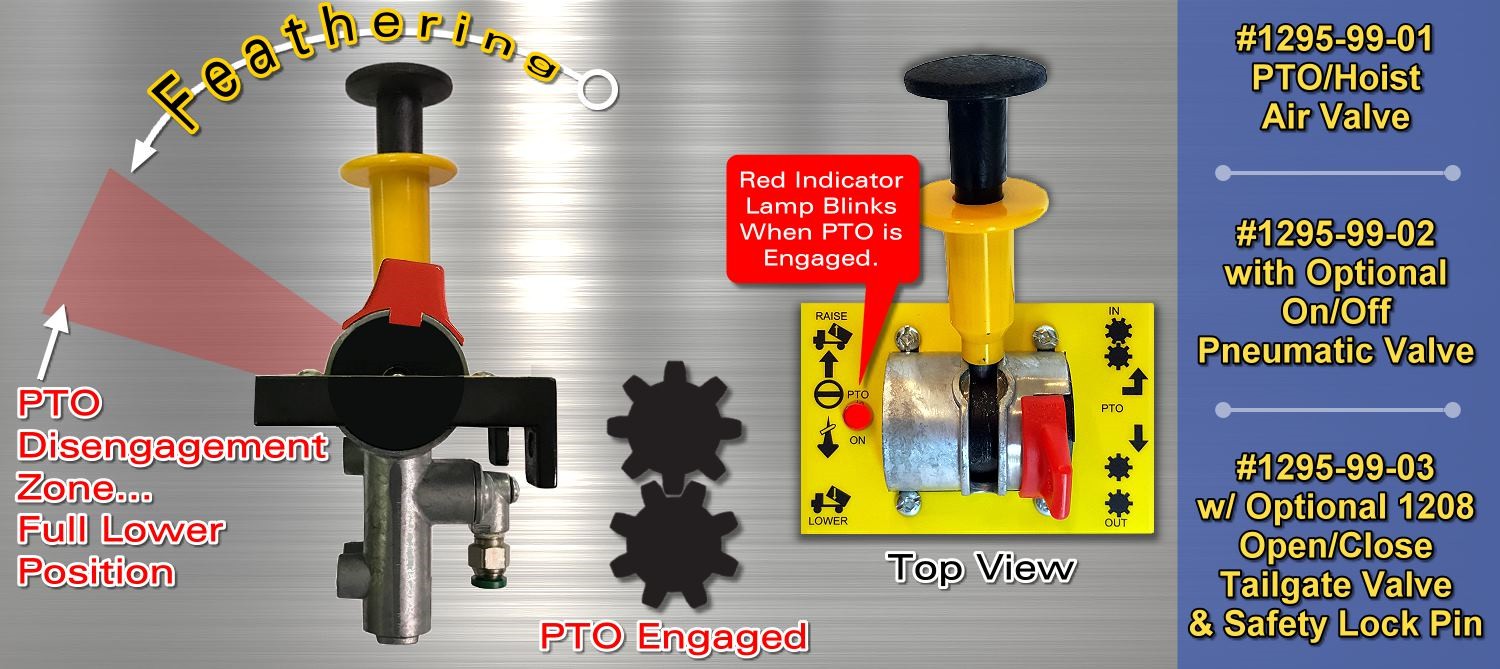

The PTO is only disengaged when the control lever is moved to the “Full Lower” position allowing the PTO to remain engaged for working into an asphalt spreader and similar operations.

Catalog & Brochure Downloads

DAV1295 Brochure
1295-flyer

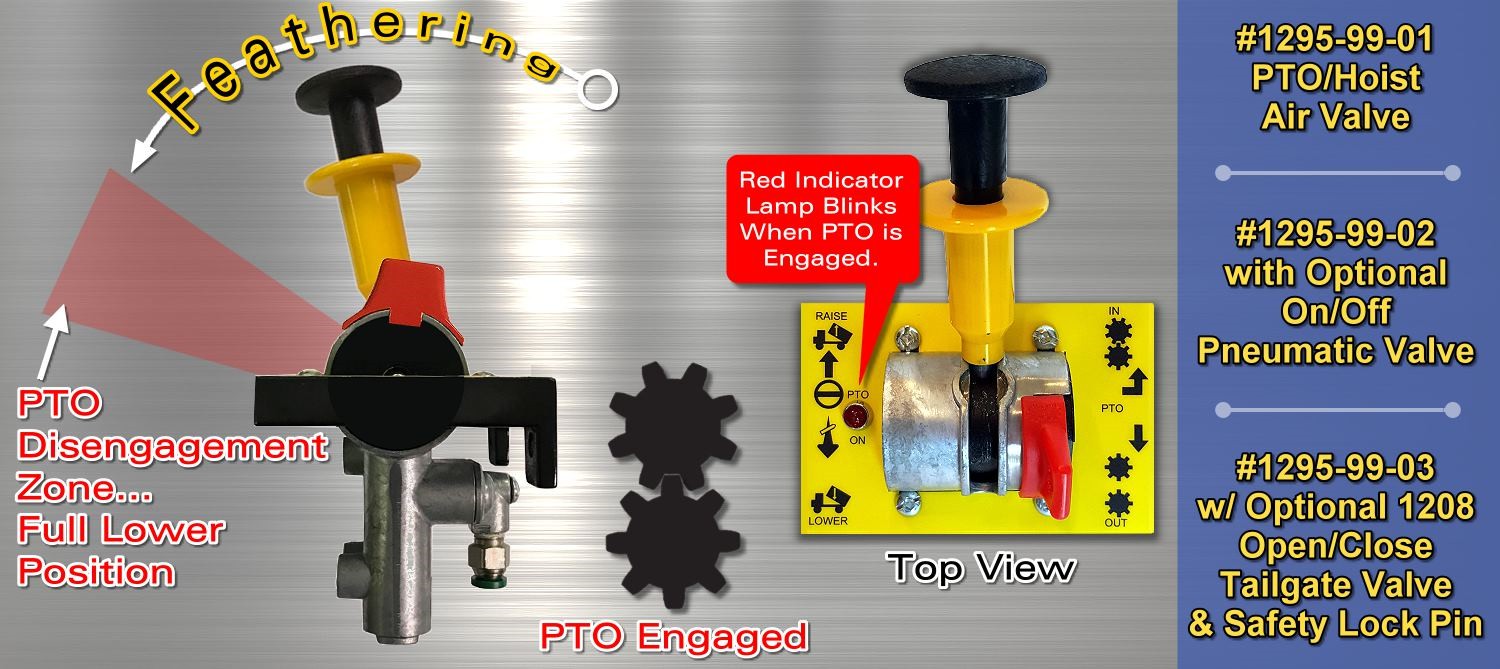

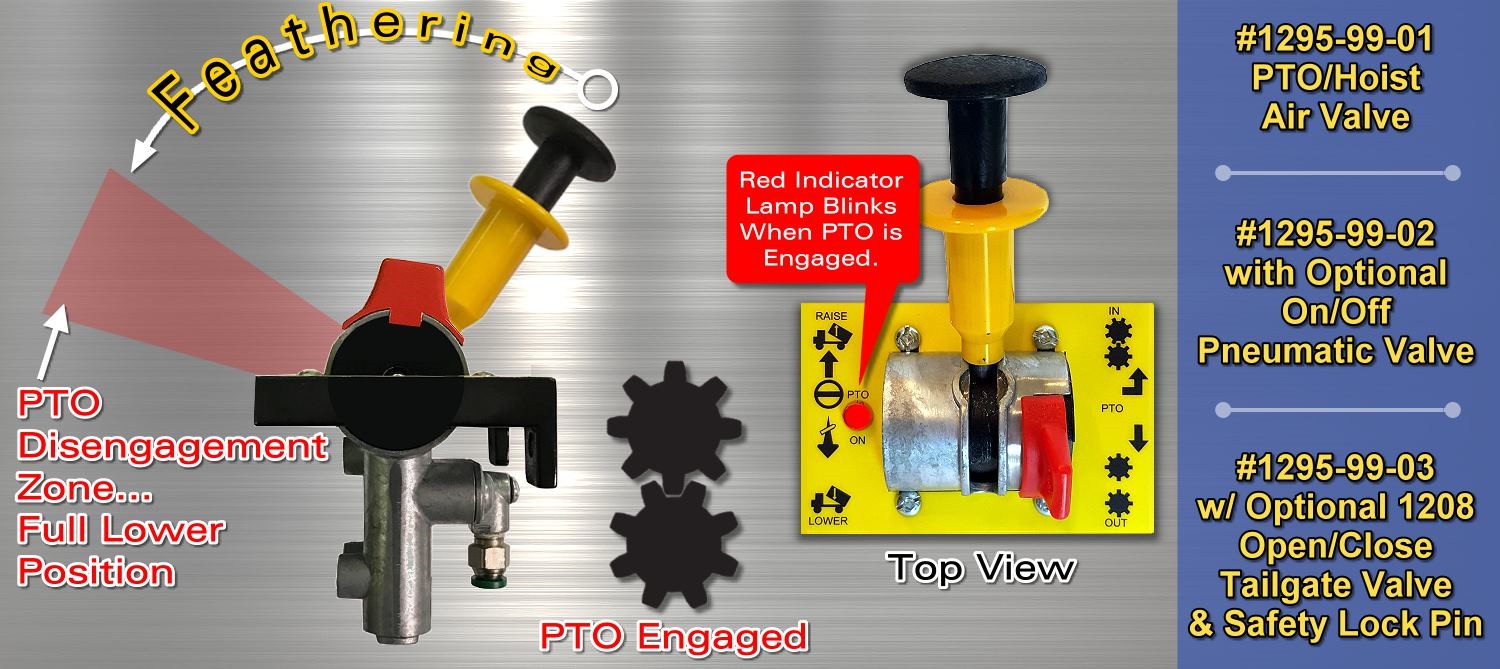

The RED Safety Knob engages & disengages the PTO.
  • The BLACK / YELLOW lift handle controls the raising, neutral and controlled lowering of pneumatic shift cylinders on various dump pumps (Hoist).

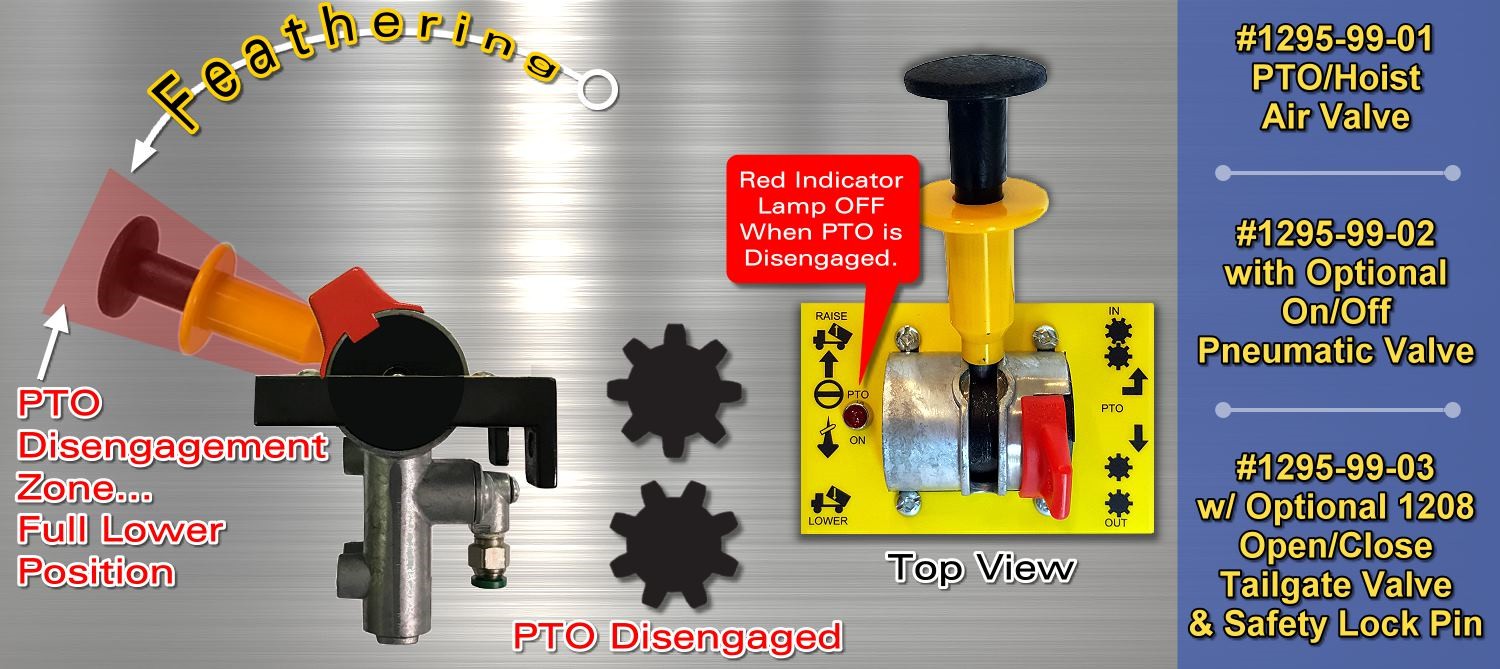

  • Automatic mechanical disengagement of the PTO in the “Full Lower” position.
  • Bright RED LED flashing warning light notifies the operator that the PTO is fully engaged or disengaged.
  • PTO Safety Knob prevents accidental engagement of the PTO.
  • 1/8" NPT inlet, exhaust and work ports.
  • PTO Disengagement Zone Full Lower Position.
Contact Us



Fully Serviceable

A pneumatic valve with a small casting body that can easily be mounted in the mini console or tight spaces (without the mounting bracket).

Part Numbers



1295-99-011295-99-01
(Schematics)
PTO / Hoist control / Fully Raise Position / Neutral Detent / lower modulating control with PTO Auto-Disengage.

1295-99-021295-99-02
(Schematics)
PTO / Hoist Control / Fully Raise Position / Neutral Detent / lower modulating control with PTO Auto-Disengage / 1201 On/Off valve.

1295-99-031295-99-03
(Schematics)
PTO / Hoist Control / Fully Raise Position / Neutral Detent / Lower modulating control with PTO Auto-Disengage / 1208 open / close tailgate valve with air logic.
